daudzapgriezienu viļņu atspere ar starplikas galiem

daudzapgriezienu viļņu atspere ar starplikām jūsu mašīnām KMS

Name: daudzapgriezienu viļņu atspere ar starplikām jūsu mašīnām KMS
Brand: beentools

Plakanajiem viļņu atsperēm ar plakanu galu uz augšu ir plakana spole katrā galā kā atbalsta spole, un daudzslāņu viļņu atsperes ar virsotni uz ieleju.

Sazinieties ar mums

Apraksts

Augšējais un apakšējais slānis saskaras grēdās un ielejās; efektīvais spoļu skaits ir par 2 mazāks nekā kopējais spoļu skaits. Vairāku vijumu viļņveida atsperēm ar nobīdītiem galiem parasti ir vairākas viļņu grēdas, kas rada relatīvu aksiālo pārvietojumu, kad tās tiek pakļautas aksiālai slodzei, veidojot deformācijas enerģiju. Kad pieliktā slodze tiek noņemta, viļņu atspere deformācijas enerģijas ietekmē atgriežas savā sākotnējā formā, nodrošinot amortizāciju un vibrāciju slāpēšanu. Šīs atsperes konstrukcija ļauj nodrošināt stabilu elastības koeficientu, kad slodze ir proporcionāla deformācijas lielumam, dažādos ekspluatācijas apstākļos, tādējādi nodrošinot precīzu slodzes kontroli.

Funkcijas un priekšrocības

Konstrukcijas stabilitāte:Atspera, kas nodrošina labāku stabilitāti un vienmērīgu slodzes sadalījumu, samazinot lokālu sprieguma koncentrāciju.
Vibrāciju slāpēšanas efekts:Šī konstrukcija var efektīvi amortizēt triecienus un vibrāciju un ir piemērota augstfrekvences un lielu kustību gadījumiem.
Vairāku spoļu konstrukcija:Vairāku spoļu konstrukcija piešķir atsperei labāku elastību un deformācijas spēju, un tā var izturēt lielākas slodzes.
Pielietojums:Plaši izmanto automobiļu balstiekārtu sistēmās, mehāniskajās iekārtās, elektroniskajos izstrādājumos u. c., kur nepieciešama augsta veiktspēja un uzticamība.
Materiālu izvēle:Lai uzlabotu atsperu noguruma ilgumu un izturību, bieži tiek izmantoti augstas stiprības materiāli, piemēram, leģētais tērauds.

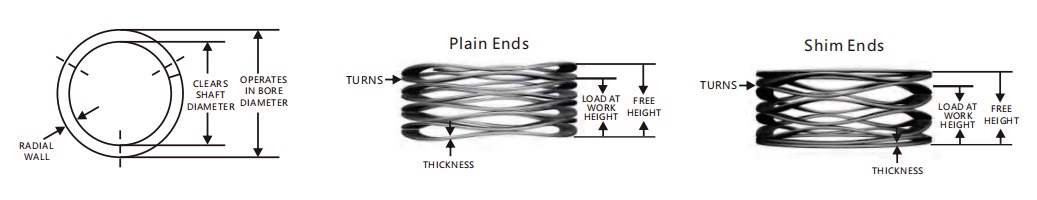

daudzkārtu viļņveida atsperes ar uzmavas galiem

Tehniskie parametri1

Prece Nr.	Darbojas Caurumu diametrs (mm)	Atbloķē vārpstu Diametrs(mm)	Slodze(N)	Darba augstums(mm)	Brīvs augstums(mm)	Atsperes koeficients(N/mm)
KMS05-L1	5	3.5	5	1.14	1.84	7.14
KMS05-L2	5	3.5	5	1.52	2.45	5.38
KMS05-L3	5	3.5	5	1.91	3.06	4.35
KMS05-L4	5	3.5	5	2.26	3.68	3.52
KMS05-L5	5	3.5	5	2.67	4.29	3.09
KMS05-L6	5	3.5	5	3.02	4.9	2.66
KMS05-L7	5	3.5	5	3.43	5.52	2.39
KMS05-L8	5	3.5	5	4.14	6.74	1.92
KMS05-L9	5	3.5	5	4.9	7.97	1.63
KMS05-M1	5	3.5	10	1.14	1.89	13.33
KMS05-M2	5	3.5	10	1.52	2.52	10
KMS05-M3	5	3.5	10	1.91	3.15	8.06
KMS05-M4	5	3.5	10	2.26	3.78	6.58
KMS05-M5	5	3.5	10	2.67	4.41	5.75
KMS05-M6	5	3.5	10	3.02	5.04	4.95
KMS05-M7	5	3.5	10	3.43	5.04	4.46
KMS05-M8	5	3.5	10	4.14	6.93	3.58
KMS05-M9	5	3.5	10	4.9	8.19	3.04
KMS06-L1	6	4	6	0.61	1.52	6.59
KMS06-L2	6	4	6	0.81	2.03	4.92
KMS06-L3	6	4	6	1.02	2.54	3.95
KMS06-L4	6	4	6	1.22	3.05	3.28
KMS06-L5	6	4	6	1.42	3.56	2.8
KMS06-L6	6	4	6	1.63	4.06	2.47
KMS06-L7	6	4	6	1.83	4.57	2.19
KMS06-L8	6	4	6	2.24	5.59	1.79
KMS06-L9	6	4	6	2.64	6.6	1.52
KMS06-M1	6	4	12	0.74	1.52	15.38
KMS06-M2	6	4	12	0.97	2.03	11.32
KMS06-M3	6	4	12	1.22	2.54	9.09
KMS06-M4	6	4	12	1.47	3.05	7.59
KMS06-M5	6	4	12	1.7	3.56	6.45
KMS06-M6	6	4	12	1.96	4.06	5.71
KMS06-M7	6	4	12	2.18	4.57	5.02
KMS06-M8	6	4	12	2.69	5.59	4.14
KMS06-M9	6	4	12	3.18	6.6	3.51
KMS08-L1	8	5	15	1.7	2.82	13.39
KMS08-L2	8	5	15	2.39	3.76	10.95
KMS08-L3	8	5	15	2.74	4.7	7.65
KMS08-L4	8	5	15	3.56	5.64	7.21
KMS08-L5	8	5	15	4.01	6.58	5.84
KMS08-L6	8	5	15	4.57	7.52	5.08
KMS08-L7	8	5	15	5.26	8.46	4.69
KMS08-L8	8	5	15	6.35	10.34	3.76
KMS08-L9	8	5	15	7.37	12.22	3.09
KMS08-M1	8	5	30	1.78	2.82	28.85
KMS08-M2	8	5	30	2.54	3.76	24.59
KMS08-M3	8	5	30	3.05	4.7	18.18
KMS08-M4	8	5	30	3.81	5.64	16.39
KMS08-M5	8	5	30	4.32	6.58	13.27
KMS08-M6	8	5	30	4.95	7.52	11.67
KMS08-M7	8	5	30	5.59	8.46	10.45
KMS08-M8	8	5	30	6.86	10.34	8.62
KMS08-M9	8	5	30	7.87	12.22	6.9
KMS10-L1	10	7	18	1.91	3.96	8.78
KMS10-L2	10	7	18	2.54	5.28	6.57
KMS10-L3	10	7	18	3.15	6.6	5.22
KMS10-L4	10	7	18	3.78	7.92	4.35
KMS10-L5	10	7	18	4.42	9.25	3.73
KMS10-L6	10	7	18	5.05	10.57	3.26
KMS10-L7	10	7	18	5.69	11.89	2.9
KMS10-L8	10	7	18	6.32	13.21	2.61
KMS10-L9	10	7	18	6.96	14.53	2.38
KMS10-M1	10	7	35	2.03	3.96	18.13
KMS10-M2	10	7	35	2.79	5.28	14.06
KMS10-M3	10	7	35	3.56	6.6	11.51
KMS10-M4	10	7	35	4.32	7.92	9.72
KMS10-M5	10	7	35	5.08	9.25	8.39
KMS10-M6	10	7	35	5.84	10.57	7.4
KMS10-M7	10	7	35	6.6	11.89	6.62
KMS10-M8	10	7	35	7.37	13.21	5.99
KMS10-M9	10	7	35	8.13	14.53	5.47
KMS12-L1	12	9	20	1.47	4.34	6.97
KMS12-L2	12	9	20	1.98	5.79	5.25
KMS12-L3	12	9	20	2.46	7.24	4.18
KMS12-L4	12	9	20	2.95	8.69	3.48
KMS12-L5	12	9	20	3.45	10.13	2.99
KMS12-L6	12	9	20	3.94	11.58	2.62
KMS12-L7	12	9	20	4.45	13.03	2.33
KMS12-L8	12	9	20	4.93	14.48	2.09
KMS12-L9	12	9	20	5.44	15.93	1.91
KMS12-M1	12	8.5	40	2.36	4.34	20.2
KMS12-M2	12	8.5	40	3.18	5.79	15.33
KMS12-M3	12	8.5	40	3.96	7.24	12.2
KMS12-M4	12	8.5	40	4.75	8.69	10.15
KMS12-M5	12	8.5	40	5.54	10.13	8.71
KMS12-M6	12	8.5	40	6.32	11.58	7.6
KMS12-M7	12	8.5	40	7.11	13.03	6.76
KMS12-M8	12	8.5	40	7.92	14.48	6.1
KMS12-M9	12	8.5	40	8.71	15.93	5.54
KMS12-H1	12	8.5	60	1.98	4.34	25.42
KMS12-H2	12	8.5	60	2.64	5.79	19.05
KMS12-H3	12	8.5	60	3.3	7.24	15.23
KMS12-H4	12	8.5	60	3.99	8.69	12.77
KMS12-H5	12	8.5	60	4.65	10.13	10.95
KMS12-H6	12	8.5	60	5.31	11.58	9.57
KMS12-H7	12	8.5	60	5.97	13.03	8.5
KMS12-H8	12	8.5	60	6.63	14.48	7.64
KMS12-H9	12	8.5	60	7.29	15.93	6.94
KMS14-L1	14	10	22	2.18	4.95	7.94
KMS14-L2	14	10	22	2.95	6.6	6.03
KMS14-L3	14	10	22	3.71	8.26	4.84
KMS14-L4	14	10	22	4.52	9.91	4.08
KMS14-L5	14	10	22	5.33	11.56	3.53
KMS14-L6	14	10	22	6.17	13.21	3.13
KMS14-L7	14	10	22	7.01	14.86	2.8
KMS14-L8	14	10	22	7.85	16.51	2.54
KMS14-L9	14	10	22	8.71	18.16	2.33
KMS14-M1	14	10	50	2.18	4.95	18.05
KMS14-M2	14	10	50	2.95	6.6	13.7
KMS14-M3	14	10	50	3.71	8.26	10.99
KMS14-M4	14	10	50	4.52	9.91	9.28
KMS14-M5	14	10	50	5.33	11.56	8.03
KMS14-M6	14	10	50	6.17	13.21	7.1
KMS14-M7	14	10	50	7.01	14.86	6.37
KMS14-M8	14	10	50	7.85	16.51	5.77
KMS14-M9	14	10	50	8.71	18.16	5.29
KMS14-H1	14	9	80	3.15	4.95	44.44
KMS14-H2	14	9	80	4.19	6.6	33.2
KMS14-H3	14	9	80	5.26	8.26	26.67
KMS14-H4	14	9	80	6.3	9.91	22.16
KMS14-H5	14	9	80	7.34	11.56	18.96
KMS14-H6	14	9	80	8.41	13.21	16.67
KMS14-H7	14	9	80	9.45	14.86	14.79
KMS14-H8	14	9	80	10.49	16.51	13.29
KMS14-H9	14	9	80	11.56	18.16	12.12
KMS15-L1	15	11	25	2.57	5.18	9.58
KMS15-L2	15	11	25	3.43	6.91	7.18
KMS15-L3	15	11	25	4.27	8.64	5.72
KMS15-L4	15	11	25	5.13	10.36	4.78
KMS15-L5	15	11	25	5.99	12.09	4.1
KMS15-L6	15	11	25	6.83	13.82	3.58
KMS15-L7	15	11	25	7.7	15.54	3.19
KMS15-L8	15	11	25	8.53	17.27	2.86
KMS15-L9	15	11	25	9.4	19	2.6
KMS15-M1	15	10	50	3.43	5.18	28.57
KMS15-M2	15	10	50	4.57	6.91	21.37
KMS15-M3	15	10	50	5.72	8.64	17.12
KMS15-M4	15	10	50	6.86	10.36	14.29
KMS15-M5	15	10	50	8	12.09	12.22
KMS15-M6	15	10	50	9.14	13.82	10.68
KMS15-M7	15	10	50	10.29	15.54	9.52
KMS15-M8	15	10	50	11.43	17.27	8.56
KMS15-M9	15	10	50	12.57	19	7.78
KMS15-H1	15	10	80	3.2	5.18	40.4
KMS15-H2	15	10	80	4.19	6.91	29.41
KMS15-H3	15	10	80	5.23	8.64	23.46
KMS15-H4	15	10	80	6.27	10.36	19.56
KMS15-H5	15	10	80	7.32	12.09	16.77
KMS15-H6	15	10	80	8.36	13.82	14.65
KMS15-H7	15	10	80	9.4	15.54	13.03
KMS15-H8	15	10	80	10.46	17.27	11.75
KMS15-H9	15	10	80	11.51	19	10.68
KMS16-L1	16	11	25	2.11	5.41	7.58
KMS16-L2	16	11	25	2.79	7.21	5.66
KMS16-L3	16	11	25	3.51	9.02	4.54
KMS16-L4	16	11	25	4.19	10.82	3.77
KMS16-L5	16	11	25	4.9	12.62	3.24
KMS16-L6	16	11	25	6.3	16.23	2.52
KMS16-L7	16	11	25	7.7	19.84	2.06
KMS16-L8	16	11	25	9.09	23.44	1.74
KMS16-M1	16	11	55	3.63	5.41	30.9
KMS16-M2	16	11	55	4.83	7.21	23.11
KMS16-M3	16	11	55	6.05	9.02	18.52
KMS16-M4	16	11	55	7.24	10.82	15.36
KMS16-M5	16	11	55	8.46	12.62	13.22
KMS16-M6	16	11	55	10.87	16.23	10.26
KMS16-M7	16	11	55	13.28	19.84	8.38
KMS16-M8	16	11	55	15.7	23.44	7.11
KMS16-H1	16	11	90	3.3	5.41	42.65
KMS16-H2	16	11	90	4.57	7.21	34.09
KMS16-H3	16	11	90	5.59	9.02	26.24
KMS16-H4	16	11	90	6.86	10.82	22.73
KMS16-H5	16	11	90	7.87	12.62	18.95
KMS16-H6	16	11	90	10.16	16.23	14.83
KMS16-H7	16	11	90	12.45	19.84	12.18
KMS16-H8	16	11	90	14.73	23.44	10.33
KMS18-L1	18	13	30	3.63	5.72	14.35
KMS18-L2	18	13	30	4.75	7.62	10.45
KMS18-L3	18	13	30	5.94	9.53	8.36
KMS18-L4	18	13	30	7.14	11.43	6.99
KMS18-L5	18	13	30	8.31	13.34	5.96
KMS18-L6	18	13	30	10.69	17.15	4.64
KMS18-L7	18	13	30	14.25	22.86	3.48
KMS18-M1	18	13	55	3.68	5.72	26.96
KMS18-M2	18	13	55	4.98	7.62	20.83
KMS18-M3	18	13	55	6.22	9.53	16.62
KMS18-M4	18	13	55	7.47	11.43	13.89
KMS18-M5	18	13	55	8.74	13.34	11.96
KMS18-M6	18	13	55	11.23	17.15	9.29
KMS18-M7	18	13	55	14.96	22.86	6.96
KMS18-H1	18	13	90	3.84	5.72	47.87
KMS18-H2	18	13	90	5.13	7.62	36.14
KMS18-H3	18	13	90	6.4	9.53	28.75
KMS18-H4	18	13	90	7.7	11.43	24.13
KMS18-H5	18	13	90	8.97	13.34	20.59
KMS18-H6	18	13	90	11.53	17.15	16.01
KMS18-H7	18	13	90	15.37	22.86	12.02
KMS20-L1	20	15	35	2.72	6.32	9.72
KMS20-L2	20	15	35	3.61	8.43	7.26
KMS20-L3	20	15	35	4.52	10.54	5.81
KMS20-L4	20	15	35	5.41	12.65	4.83
KMS20-L5	20	15	35	6.32	14.76	4.15
KMS20-L6	20	15	35	8.13	18.97	3.23
KMS20-L7	20	15	35	10.82	25.3	2.42
KMS20-M1	20	14	70	3.05	6.32	21.41
KMS20-M2	20	14	70	4.06	8.43	16.02
KMS20-M3	20	14	70	5.08	10.54	12.82
KMS20-M4	20	14	70	6.27	12.65	10.97
KMS20-M5	20	14	70	7.32	14.76	9.41
KMS20-M6	20	14	70	9.17	18.97	7.14
KMS20-M7	20	14	70	12.22	25.3	5.35
KMS20-H1	20	14	100	4.24	6.32	48.08
KMS20-H2	20	14	100	5.66	8.43	36.1
KMS20-H3	20	14	100	7.06	10.54	28.74
KMS20-H4	20	14	100	8.48	12.65	23.98
KMS20-H5	20	14	100	9.91	14.76	20.62
KMS20-H6	20	14	100	12.73	18.97	16.03
KMS20-H7	20	14	100	16.97	25.3	12
KMS25-L1	25	19	50	2.06	6.63	10.94
KMS25-L2	25	19	50	2.74	8.84	8.2
KMS25-L3	25	19	50	3.43	11.05	6.56
KMS25-L4	25	19	50	4.11	13.26	5.46
KMS25-L5	25	19	50	4.8	15.47	4.69
KMS25-L6	25	19	50	6.2	19.89	3.65
KMS25-L7	25	19	50	8.26	26.52	2.74
KMS25-M1	25	19	80	2.95	6.63	21.74
KMS25-M2	25	19	80	3.94	8.84	16.33
KMS25-M3	25	19	80	4.9	11.05	13.01
KMS25-M4	25	19	80	5.89	13.26	10.85

Tehniskie parametri2

Prece Nr.	Darbojas Caurumu diametrs (mm)	Atbloķē vārpstu Diametrs(mm)	Slodze(N)	Darba augstums(mm)	Brīvs augstums(mm)	Atsperes koeficients(N/mm)
KMS25-M5	25	19	80	6.88	15.47	9.31
KMS25-M6	25	19	80	8.84	19.89	7.24
KMS25-M7	25	19	80	11.79	26.52	5.43
KMS25-H1	25	19	110	4.04	6.63	42.47
KMS25-H2	25	19	110	5.38	8.84	31.79
KMS25-H3	25	19	110	6.73	11.05	25.46
KMS25-H4	25	19	110	8.08	13.26	21.24
KMS25-H5	25	19	110	9.4	15.47	18.12
KMS25-H6	25	19	110	12.12	19.89	14.16
KMS25-H7	25	19	110	16.15	26.52	10.61
KMS28-L1	28	22	50	3.76	7.24	14.37
KMS28-L2	28	22	50	5	9.65	10.75
KMS28-L3	28	22	50	6.27	12.07	8.62
KMS28-L4	28	22	50	7.52	14.48	7.18
KMS28-L5	28	22	50	8.79	16.89	6.17
KMS28-L6	28	22	50	10.03	19.3	5.39
KMS28-L7	28	22	50	11.28	21.72	4.79
KMS28-L8	28	22	50	13.79	26.54	3.92
KMS28-L9	28	22	50	16.31	31.37	3.32
KMS28-M1	28	22	80	4.39	7.24	28.07
KMS28-M2	28	22	80	5.84	9.65	21
KMS28-M3	28	22	80	7.32	12.07	16.84
KMS28-M4	28	22	80	8.79	14.48	14.06
KMS28-M5	28	22	80	10.24	16.89	12.03
KMS28-M6	28	22	80	11.71	19.3	10.54
KMS28-M7	28	22	80	13.18	21.72	9.37
KMS28-M8	28	22	80	16.1	26.54	7.66
KMS28-M9	28	22	80	19.02	31.37	6.48
KMS28-H1	28	22	130	4.57	7.24	48.69
KMS28-H2	28	22	130	6.07	9.65	36.31
KMS28-H3	28	22	130	7.59	12.07	29.02
KMS28-H4	28	22	130	9.12	14.48	24.25
KMS28-H5	28	22	130	10.64	16.89	20.8
KMS28-H6	28	22	130	12.17	19.3	18.23
KMS28-H7	28	22	130	13.69	21.72	16.19
KMS28-H8	28	22	130	16.71	26.54	13.22
KMS28-H9	28	22	130	19.76	31.37	11.2
KMS30-L1	30	24	50	3.18	7.62	11.26
KMS30-L2	30	24	50	4.22	10.16	8.42
KMS30-L3	30	24	50	5.28	12.7	6.74
KMS30-L4	30	24	50	6.32	15.24	5.61
KMS30-L5	30	24	50	7.39	17.78	4.81
KMS30-L6	30	24	50	8.43	20.32	4.21
KMS30-L7	30	24	50	9.5	22.86	3.74
KMS30-L8	30	24	50	11.61	27.94	3.06
KMS30-L9	30	24	50	13.72	33.02	2.59
KMS30-M1	30	24	90	3.51	7.62	21.9
KMS30-M2	30	24	90	4.7	10.16	16.48
KMS30-M3	30	24	90	5.87	12.7	13.18
KMS30-M4	30	24	90	7.04	15.24	10.98
KMS30-M5	30	24	90	8.2	17.78	9.39
KMS30-M6	30	24	90	9.37	20.32	8.22
KMS30-M7	30	24	90	10.54	22.86	7.31
KMS30-M8	30	24	90	12.9	27.94	5.98
KMS30-M9	30	24	90	15.24	33.02	5.06
KMS30-H1	30	24	130	4.19	7.62	37.9
KMS30-H2	30	24	130	5.59	10.16	28.45
KMS30-H3	30	24	130	6.99	12.7	22.77
KMS30-H4	30	24	130	8.38	15.24	18.95
KMS30-H5	30	24	130	9.78	17.78	16.25
KMS30-H6	30	24	130	11.18	20.32	14.22
KMS30-H7	30	24	130	12.57	22.86	12.63
KMS30-H8	30	24	130	15.37	27.94	10.34
KMS30-H9	30	24	130	18.16	33.02	8.75
KMS35-L1	35	27	70	3.94	8.38	15.77
KMS35-L2	35	27	70	5.23	11.18	11.76
KMS35-L3	35	27	70	6.55	13.97	9.43
KMS35-L4	35	27	70	7.87	16.76	7.87
KMS35-L5	35	27	70	9.17	19.56	6.74
KMS35-L6	35	27	70	10.49	22.35	5.9
KMS35-L7	35	27	70	11.81	25.15	5.25
KMS35-L8	35	27	70	14.43	30.73	4.29
KMS35-L9	35	27	70	17.04	36.32	3.63
KMS35-M1	35	27	110	4.14	8.38	25.94
KMS35-M2	35	27	110	5.51	11.18	19.4
KMS35-M3	35	27	110	6.88	13.97	15.51
KMS35-M4	35	27	110	8.26	16.76	12.94
KMS35-M5	35	27	110	9.63	19.56	11.08
KMS35-M6	35	27	110	11.02	22.35	9.71
KMS35-M7	35	27	110	12.4	25.15	8.63
KMS35-M8	35	27	110	15.14	30.73	7.06
KMS35-M9	35	27	110	17.91	36.32	5.98
KMS35-H1	35	27	160	4.04	8.38	36.87
KMS35-H2	35	27	160	5.38	11.18	27.59
KMS35-H3	35	27	160	6.73	13.97	22.1
KMS35-H4	35	27	160	8.08	16.76	18.43
KMS35-H5	35	27	160	9.42	19.56	15.78
KMS35-H6	35	27	160	10.77	22.35	13.82
KMS35-H7	35	27	160	12.12	25.15	12.28
KMS35-H8	35	27	160	14.81	30.73	10.05
KMS35-H9	35	27	160	17.5	36.32	8.5
KMS40-L1	40	30	100	2.9	9.14	16.03
KMS40-L2	40	30	100	3.86	12.19	12
KMS40-L3	40	30	100	4.8	15.24	9.58
KMS40-L4	40	30	100	5.77	18.29	7.99
KMS40-L5	40	30	100	6.73	21.34	6.84
KMS40-L6	40	30	100	7.7	24.38	6
KMS40-L7	40	30	100	8.66	27.43	5.33
KMS40-L8	40	30	100	10.59	33.53	4.36
KMS40-L9	40	30	100	12.52	39.62	3.69
KMS40-M1	40	30	150	5.44	9.14	40.54
KMS40-M2	40	30	150	7.24	12.19	30.3
KMS40-M3	40	30	150	9.04	15.24	24.19
KMS40-M4	40	30	150	10.85	18.29	20.16
KMS40-M5	40	30	150	12.65	21.34	17.26
KMS40-M6	40	30	150	14.48	24.38	15.15
KMS40-M7	40	30	150	16.28	27.43	13.45
KMS40-M8	40	30	150	19.89	33.53	11
KMS40-M9	40	30	150	23.5	39.62	9.31
KMS40-H1	40	30	300	5.66	9.14	86.21
KMS40-H2	40	30	300	7.54	12.19	64.52
KMS40-H3	40	30	300	9.42	15.24	51.55
KMS40-H4	40	30	300	11.33	18.29	43.1
KMS40-H5	40	30	300	13.21	21.34	36.9
KMS40-H6	40	30	300	15.09	24.38	32.29
KMS40-H7	40	30	300	16.97	27.43	28.68
KMS40-H8	40	30	300	20.75	33.53	23.47
KMS40-H9	40	30	300	24.54	39.62	19.89
KMS45-L1	45	35	110	3.38	9.91	16.85
KMS45-L2	45	35	110	4.52	13.21	12.66
KMS45-L3	45	35	110	5.64	16.51	10.12
KMS45-L4	45	35	110	6.76	19.81	8.43
KMS45-L5	45	35	110	7.9	23.11	7.23
KMS45-L6	45	35	110	9.02	26.42	6.32
KMS45-L7	45	35	110	10.16	29.72	5.62
KMS45-L8	45	35	110	12.4	36.32	4.6
KMS45-L9	45	35	110	14.66	42.93	3.89
KMS45-M1	45	35	225	5.33	9.91	49.13
KMS45-M2	45	35	225	6.99	13.21	36.17
KMS45-M3	45	35	225	9.14	16.51	30.53
KMS45-M4	45	35	225	10.8	19.81	24.97
KMS45-M5	45	35	225	12.7	23.11	21.61
KMS45-M6	45	35	225	14.48	26.42	18.84
KMS45-M7	45	35	225	16.26	29.72	16.72
KMS45-M8	45	35	225	19.81	36.32	13.63
KMS45-M9	45	35	225	23.37	42.93	11.5
KMS45-H1	45	35	400	6.43	9.91	114.94
KMS45-H2	45	35	400	8.38	13.21	82.82
KMS45-H3	45	35	400	11.2	16.51	75.33
KMS45-H4	45	35	400	12.95	19.81	58.31
KMS45-H5	45	35	400	15.37	23.11	51.68
KMS45-H6	45	35	400	17.27	26.42	43.72
KMS45-H7	45	35	400	19.68	29.72	39.88
KMS45-H8	45	35	400	24.26	36.32	33.17
KMS45-H9	45	35	400	28.45	42.93	27.62
KMS50-L1	50	40	110	4.83	10.29	20.15
KMS50-L2	50	40	110	6.1	13.72	14.44
KMS50-L3	50	40	110	7.87	17.15	11.85
KMS50-L4	50	40	110	9.4	20.57	9.85
KMS50-L5	50	40	110	11.3	24	8.66
KMS50-L6	50	40	110	12.7	27.43	7.47
KMS50-L7	50	40	110	14.99	30.86	6.93
KMS50-L8	50	40	110	18.16	37.72	5.62
KMS50-L9	50	40	110	21.34	44.58	4.73
KMS50-L10	50	40	110	24.64	51.44	4.1
KMS50-M1	50	40	225	4.62	10.29	39.68
KMS50-M2	50	40	225	6.35	13.72	30.53
KMS50-M3	50	40	225	7.49	17.15	23.29
KMS50-M4	50	40	225	8.89	20.57	19.26
KMS50-M5	50	40	225	10.54	24	16.72
KMS50-M6	50	40	225	11.89	27.43	14.48
KMS50-M7	50	40	225	13.59	30.86	13.03
KMS50-M8	50	40	225	16.71	37.72	10.71
KMS50-M9	50	40	225	19.61	44.58	9.01
KMS50-M10	50	40	225	22.48	51.44	7.77
KMS50-H1	50	40	400	5.92	10.29	91.53
KMS50-H2	50	40	400	7.8	13.72	67.57
KMS50-H3	50	40	400	10.16	17.15	57.22
KMS50-H4	50	40	400	11.79	20.57	45.56
KMS50-H5	50	40	400	14.15	24	40.61
KMS50-H6	50	40	400	15.62	27.43	33.87
KMS50-H7	50	40	400	17.91	30.86	30.89
KMS50-H8	50	40	400	21.54	37.72	24.72
KMS50-H9	50	40	400	25.65	44.58	21.13
KMS50-H10	50	40	400	29.21	51.44	17.99
KMS55-L1	55	45	125	5.59	11.05	22.89
KMS55-L2	55	45	125	7.72	14.73	17.83
KMS55-L3	55	45	125	9.68	18.41	14.3
KMS55-L4	55	45	125	11.48	22.1	11.77
KMS55-L5	55	45	125	13.92	25.78	10.54
KMS55-L6	55	45	125	15.52	29.46	8.97
KMS55-L7	55	45	125	18.41	33.15	8.49
KMS55-L8	55	45	125	21.67	40.51	6.63
KMS55-L9	55	45	125	25.65	47.88	5.62
KMS55-L10	55	45	125	29.77	55.25	4.91
KMS55-M1	55	45	250	3.1	11.05	31.45
KMS55-M2	55	45	250	4.11	14.73	23.54
KMS55-M3	55	45	250	5.16	18.41	18.85
KMS55-M4	55	45	250	6.2	22.1	15.72
KMS55-M5	55	45	250	7.21	25.78	13.46
KMS55-M6	55	45	250	8.26	29.46	11.79
KMS55-M7	55	45	250	9.27	33.15	10.47
KMS55-M8	55	45	250	11.33	40.51	8.57
KMS55-M9	55	45	250	13.41	47.88	7.25
KMS55-M10	55	45	250	15.47	55.25	6.28
KMS55-H1	55	45	400	5.31	11.05	69.69
KMS55-H2	55	45	400	7.24	14.73	53.4
KMS55-H3	55	45	400	9.09	18.41	42.87
KMS55-H4	55	45	400	10.64	22.1	34.9
KMS55-H5	55	45	400	12.24	25.78	29.54
KMS55-H6	55	45	400	14.1	29.46	26.04
KMS55-H7	55	45	400	15.82	33.15	23.08
KMS55-H8	55	45	400	19.3	40.51	18.86
KMS55-H9	55	45	400	23.11	47.88	16.15
KMS55-H10	55	45	400	26.54	55.25	13.93
KMS60-L1	60	50	135	5.59	11.43	23.12
KMS60-L2	60	50	135	7.47	15.24	17.37
KMS60-L3	60	50	135	9.32	19.05	13.87
KMS60-L4	60	50	135	11.2	22.86	11.58
KMS60-L5	60	50	135	13.06	26.67	9.92
KMS60-L6	60	50	135	14.94	30.48	8.69
KMS60-L7	60	50	135	16.79	34.29	7.71
KMS60-L8	60	50	135	20.52	41.91	6.31
KMS60-L9	60	50	135	24.26	49.53	5.34
KMS60-L10	60	50	135	27.99	57.15	4.63
KMS60-M1	60	50	275	6.65	11.43	57.53
KMS60-M2	60	50	275	8.86	15.24	43.1
KMS60-M3	60	50	275	11.07	19.05	34.46
KMS60-M4	60	50	275	13.28	22.86	28.71
KMS60-M5	60	50	275	15.49	26.67	24.6
KMS60-M6	60	50	275	17.7	30.48	21.52
KMS60-M7	60	50	275	19.94	34.29	19.16
KMS60-M8	60	50	275	24.36	41.91	15.67
KMS60-M9	60	50	275	28.78	49.53	13.25
KMS60-M10	60	50	275	33.22	57.15	11.49
KMS60-H1	60	50	450	7.75	11.43	122.28
KMS60-H2	60	50	450	10.31	15.24	91.28
KMS60-H3	60	50	450	12.9	19.05	73.17
KMS60-H4	60	50	450	15.47	22.86	60.89
KMS60-H5	60	50	450	18.06	26.67	52.26
KMS60-H6	60	50	450	20.62	30.48	45.64
KMS60-H7	60	50	450	23.22	34.29	40.65
KMS60-H8	60	50	450	28.37	41.91	33.23
KMS60-H9	60	50	450	33.53	49.53	28.13
KMS60-H10	60	50	450	38.68	57.15	24.36
