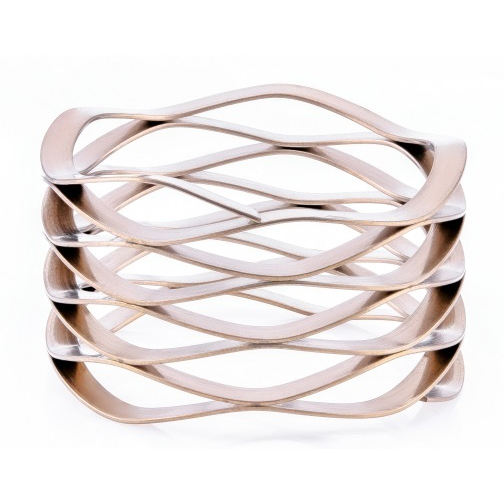

Apraksts

Vairāku apgriezienu viļņu atsperes bez slīpēšanas galiemir specializētas atsperes, kas paredzētas kompaktām iekārtām un lietojumiem, kuros ir jūtīgs svars, un nodrošina izcilu elastību un atbalstu ierobežotā telpā. Katram slānim ir viļņu skaits, piemēram, 2,5, 3,5 vai 4,5, un augšējais un apakšējais slānis saskaras griestos un ieplakās, maksimāli palielinot spirāles efektivitāti un atsperes kompaktumu.

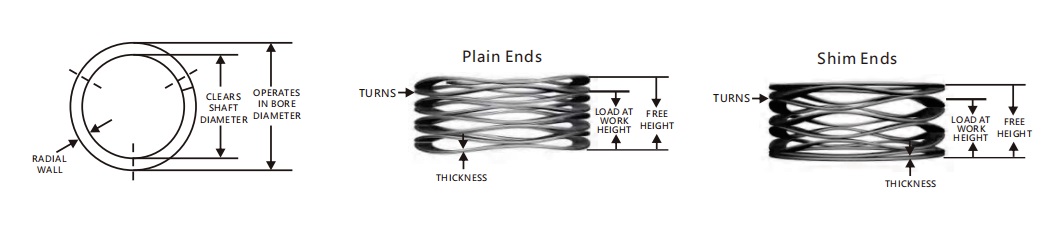

multi-turn wave springs with no shim ends

Vairāku vijumu viļņu atsperes bez starplikas galiem

Galvenās īpašības un priekšrocības

  • Konstrukcija bez starplikām:Izslēdzot starplikas, veidojas kompaktāka un vieglāka atspere, kas samazina konstrukcijas sarežģītību un kopējo svaru.
  • Vairāku spirāļu struktūra:Vairākas spirāles atsperē nodrošina lielāku elastību, deformācijas spēju un efektīvu atbalstu sarežģītos ekspluatācijas apstākļos.
  • Efektīva spoļu ieslēgšanās:Efektīvais spoļu skaits ir vienāds ar kopējo spoļu skaitu, augšējam un apakšējam slānim tieši saskaroties griestos un ielejās, lai nodrošinātu maksimālu atbalstu.
  • Materiālu izvēle:Izvēle: Izgatavots no augstas stiprības tērauda vai leģētiem materiāliem, lai nodrošinātu izturību un uzticamību pie lielām slodzēm un cikliskām slodzēm.
  • Vibrāciju un triecienu amortizācija:Izcila ciklisko slodžu un vibrāciju slāpēšana, kas pagarina aprīkojuma kalpošanas laiku un uzticamību.

Pielietojums:

  • Aviācijas un kosmosa sistēmas, kurām nepieciešama svara samazināšana un kompakts dizains.
  • Precīzijas iekārtas ar ierobežotām montāžas vietām
  • Hidrauliskie blīvējumi un augstas klases elektromotori.
  • Automobiļu un vispārējās mehāniskās iekārtas triecienu un vibrāciju amortizēšanai.

Daudzgriezuma viļņu atsperes ar bezatloku galiem ir optimāla izvēle kritiskās vidēs, kur vieta un svars ir ļoti ierobežoti. To uzlabotā konstrukcija un augstas veiktspējas materiāli nodrošina uzticamu, ilgstošu elastību un atbalstu kosmosa, precīzās inženierijas un citās sarežģītās jomās.

Tehniskie parametri1
Prece Nr. Darbojas
Caurumu diametrs (mm)		 Atbloķē vārpstu
Diametrs(mm)		 Slodze(N) Darba augstums(mm) Brīvs augstums(mm) Atsperes koeficients(N/mm)
KM05-L1 5 3.5 5 1.14 1.84 7.14
KM05-L2 5 3.5 5 1.52 2.45 5.38
KM05-L3 5 3.5 5 1.91 3.06 4.35
M05-L4 5 3.5 5 2.26 3.68 3.52
KM05-L5 5 3.5 5 2.67 4.29 3.09
KM05-L6 5 3.5 5 3.02 4.9 2.66
KM05-L7 5 3.5 5 3.43 5.52 2.39
KM05-L8 5 3.5 5 4.14 6.74 1.92
KM05-L9 5 3.5 5 4.9 7.97 1.63
KM05-M1 5 3.5 10 1.14 1.89 13.33
KM05-M2 5 3.5 10 1.52 2.52 10
M05-M3 5 3.5 10 1.91 3.15 8.06
KM05-M4 5 3.5 10 2.26 3.78 6.58
KM05-M5 5 3.5 10 2.67 4.41 5.75
KM05-M6 5 3.5 10 3.02 5.04 4.95
KM05-M7 5 3.5 10 3.43 5.04 4.46
KM05-M8 5 3.5 10 4.14 6.93 3.58
KM05-M9 5 3.5 10 4.9 8.19 3.04
KM06-L1 6 4 6 0.61 1.52 6.59
KM06-L2 6 4 6 0.81 2.03 4.92
KM06-L3 6 4 6 1.02 2.54 3.95
KM06-L4 6 4 6 1.22 3.05 3.28
KM06-L5 6 4 6 1.42 3.56 2.8
KM06-L6 6 4 6 1.63 4.06 2.47
KM06-L7 6 4 6 1.83 4.57 2.19
KM06-L8 6 4 6 2.24 5.59 1.79
KM06-L9 6 4 6 2.64 6.6 1.52
KM06-M1 6 4 12 0.74 1.52 15.38
KM06-M2 6 4 12 0.97 2.03 11.32
KM06-M3 6 4 12 1.22 2.54 9.09
KM06-M4 6 4 12 1.47 3.05 7.59
KM06-M5 6 4 12 1.7 3.56 6.45
KM06-M6 6 4 12 1.96 4.06 5.71
KM06-M7 6 4 12 2.18 4.57 5.02
KM06-M8 6 4 12 2.69 5.59 4.14
KM06-M9 6 4 12 3.18 6.6 3.51
KM08-L1 8 5 15 1.7 2.82 13.39
KM08-L2 8 5 15 2.39 3.76 10.95
KM08-L3 8 5 15 2.74 4.7 7.65
KM08-L4 8 5 15 3.56 5.64 7.21
KM08-L5 8 5 15 4.01 6.58 5.84
KM08-L6 8 5 15 4.57 7.52 5.08
KM08-L7 8 5 15 5.26 8.46 4.69
M08-L8 8 5 15 6.35 10.34 3.76
KM08-L9 8 5 15 7.37 12.22 3.09
KM08-M1 8 5 30 1.78 2.82 28.85
KM08-M2 8 5 30 2.54 3.76 24.59
KM08-M3 8 5 30 3.05 4.7 18.18
KM08-M4 8 5 30 3.81 5.64 16.39
KM08-M5 8 5 30 4.32 6.58 13.27
KM08-M6 8 5 30 4.95 7.52 11.67
KM08-M7 8 5 30 5.59 8.46 10.45
KM08-M8 8 5 30 6.86 10.34 8.62
KM08-M9 8 5 30 7.87 12.22 6.9
KM10-L1 10 7 18 1.91 3.96 8.78
KM10-L2 10 7 18 2.54 5.28 6.57
KM10-L3 10 7 18 3.15 6.6 5.22
KM10-L4 10 7 18 3.78 7.92 4.35
KM10-L5 10 7 18 4.42 9.25 3.73
KM10-L6 10 7 18 5.05 10.57 3.26
KM10-L7 10 7 18 5.69 11.89 2.9
KM10-L8 10 7 18 6.32 13.21 2.61
KM10-L9 10 7 18 6.96 14.53 2.38
KM10-M1 10 7 35 2.03 3.96 18.13
KM10-M2 10 7 35 2.79 5.28 14.06
KM10-M3 10 7 35 3.56 6.6 11.51
KM10-M4 10 7 35 4.32 7.92 9.72
KM10-M5 10 7 35 5.08 9.25 8.39
KM10-M6 10 7 35 5.84 10.57 7.4
KM10-M7 10 7 35 6.6 11.89 6.62
KM10-M8 10 7 35 7.37 13.21 5.99
KM10-M9 10 7 35 8.13 14.53 5.47
KM12-L1 12 9 20 1.47 4.34 6.97
KM12-L2 12 9 20 1.98 5.79 5.25
KM12-L3 12 9 20 2.46 7.24 4.18
KM12-L4 12 9 20 2.95 8.69 3.48
KM12-L5 12 9 20 3.45 10.13 2.99
KM12-L6 12 9 20 3.94 11.58 2.62
KM12-L7 12 9 20 4.45 13.03 2.33
KM12-L8 12 9 20 4.93 14.48 2.09
KM12-L9 12 9 20 5.44 15.93 1.91
KM12-M1 12 8.5 40 2.36 4.34 20.2
KM12-M2 12 8.5 40 3.18 5.79 15.33
KM12-M3 12 8.5 40 3.96 7.24 12.2
KM12-M4 12 8.5 40 4.75 8.69 10.15
KM12-M5 12 8.5 40 5.54 10.13 8.71
KM12-M6 12 8.5 40 6.32 11.58 7.6
KM12-M7 12 8.5 40 7.11 13.03 6.76
KM12-M8 12 8.5 40 7.92 14.48 6.1
KM12-M9 12 8.5 40 8.71 15.93 5.54
KM12-H1 12 8.5 60 1.98 4.34 25.42
KM12-H2 12 8.5 60 2.64 5.79 19.05
KM12-H3 12 8.5 60 3.3 7.24 15.23
KM12-H4 12 8.5 60 3.99 8.69 12.77
KM12-H5 12 8.5 60 4.65 10.13 10.95
KM12-H6 12 8.5 60 5.31 11.58 9.57
KM12-H7 12 8.5 60 5.97 13.03 8.5
KM12-H8 12 8.5 60 6.63 14.48 7.64
KM12-H9 12 8.5 60 7.29 15.93 6.94
KM14-L1 14 10 22 2.18 4.95 7.94
KM14-L2 14 10 22 2.95 6.6 6.03
KM14-L3 14 10 22 3.71 8.26 4.84
KM14-L4 14 10 22 4.52 9.91 4.08
KM14-L5 14 10 22 5.33 11.56 3.53
KM14-L6 14 10 22 6.17 13.21 3.13
KM14-L7 14 10 22 7.01 14.86 2.8
KM14-L8 14 10 22 7.85 16.51 2.54
KM14-L9 14 10 22 8.71 18.16 2.33
KM14-M1 14 10 50 2.18 4.95 18.05
KM14-M2 14 10 50 2.95 6.6 13.7
KM14-M3 14 10 50 3.71 8.26 10.99
KM14-M4 14 10 50 4.52 9.91 9.28
KM14-M5 14 10 50 5.33 11.56 8.03
KM14-M6 14 10 50 6.17 13.21 7.1
KM14-M7 14 10 50 7.01 14.86 6.37
KM14-M8 14 10 50 7.85 16.51 5.77
KM14-M9 14 10 50 8.71 18.16 5.29
KM14-H1 14 9 80 3.15 4.95 44.44
KM14-H2 14 9 80 4.19 6.6 33.2
KM14-H3 14 9 80 5.26 8.26 26.67
KM14-H4 14 9 80 6.3 9.91 22.16
KM14-H5 14 9 80 7.34 11.56 18.96
KM14-H6 14 9 80 8.41 13.21 16.67
KM14-H7 14 9 80 9.45 14.86 14.79
KM14-H8 14 9 80 10.49 16.51 13.29
KM14-H9 14 9 80 11.56 18.16 12.12
KM15-L1 15 11 25 2.57 5.18 9.58
KM15-L2 15 11 25 3.43 6.91 7.18
KM15-L3 15 11 25 4.27 8.64 5.72
KM15-L4 15 11 25 5.13 10.36 4.78
KM15-L5 15 11 25 5.99 12.09 4.1
KM15-L6 15 11 25 6.83 13.82 3.58
KM15-L7 15 11 25 7.7 15.54 3.19
KM15-L8 15 11 25 8.53 17.27 2.86
KM15-L9 15 11 25 9.4 19 2.6
KM15-M1 15 10 50 3.43 5.18 28.57
KM15-M2 15 10 50 4.57 6.91 21.37
KM15-M3 15 10 50 5.72 8.64 17.12
KM15-M4 15 10 50 6.86 10.36 14.29
KM15-M5 15 10 50 8 12.09 12.22
KM15-M6 15 10 50 9.14 13.82 10.68
KM15-M7 15 10 50 10.29 15.54 9.52
KM15-M8 15 10 50 11.43 17.27 8.56
KM15-M9 15 10 50 12.57 19 7.78
KM15-H1 15 10 80 3.2 5.18 40.4
KM15-H2 15 10 80 4.19 6.91 29.41
KM15-H3 15 10 80 5.23 8.64 23.46
KM15-H4 15 10 80 6.27 10.36 19.56
KM15-H5 15 10 80 7.32 12.09 16.77
KM15-H6 15 10 80 8.36 13.82 14.65
KM15-H7 15 10 80 9.4 15.54 13.03
KM15-H8 15 10 80 10.46 17.27 11.75
KM15-H9 15 10 80 11.51 19 10.68
KM16-L1 16 11 25 2.11 5.41 7.58
KM16-L2 16 11 25 2.79 7.21 5.66
KM16-L3 16 11 25 3.51 9.02 4.54
KM16-L4 16 11 25 4.19 10.82 3.77
KM16-L5 16 11 25 4.9 12.62 3.24
KM16-L6 16 11 25 6.3 16.23 2.52
KM16-L7 16 11 25 7.7 19.84 2.06
KM16-L8 16 11 25 9.09 23.44 1.74
KM16-M1 16 11 55 3.63 5.41 30.9
KM16-M2 16 11 55 4.83 7.21 23.11
KM16-M3 16 11 55 6.05 9.02 18.52
KM16-M4 16 11 55 7.24 10.82 15.36
KM16-M5 16 11 55 8.46 12.62 13.22
KM16-M6 16 11 55 10.87 16.23 10.26
KM16-M7 16 11 55 13.28 19.84 8.38
KM16-M8 16 11 55 15.7 23.44 7.11
KM16-H1 16 11 90 3.3 5.41 42.65
KM16-H2 16 11 90 4.57 7.21 34.09
KM16-H3 16 11 90 5.59 9.02 26.24
KM16-H4 16 11 90 6.86 10.82 22.73
KM16-H5 16 11 90 7.87 12.62 18.95
KM16-H6 16 11 90 10.16 16.23 14.83
KM16-H7 16 11 90 12.45 19.84 12.18
KM16-H8 16 11 90 14.73 23.44 10.33
KM18-L1 18 13 30 3.63 5.72 14.35
KM18-L2 18 13 30 4.75 7.62 10.45
KM18-L3 18 13 30 5.94 9.53 8.36
KM18-L4 18 13 30 7.14 11.43 6.99
KM18-L5 18 13 30 8.31 13.34 5.96
KM18-L6 18 13 30 10.69 17.15 4.64
KM18-L7 18 13 30 14.25 22.86 3.48
KM18-M1 18 13 55 3.68 5.72 26.96
KM18-M2 18 13 55 4.98 7.62 20.83
KM18-M3 18 13 55 6.22 9.53 16.62
KM18-M4 18 13 55 7.47 11.43 13.89
KM18-M5 18 13 55 8.74 13.34 11.96
KM18-M6 18 13 55 11.23 17.15 9.29
KM18-M7 18 13 55 14.96 22.86 6.96
KM18-H1 18 13 90 3.84 5.72 47.87
KM18-H2 18 13 90 5.13 7.62 36.14
KM18-H3 18 13 90 6.4 9.53 28.75
KM18-H4 18 13 90 7.7 11.43 24.13
KM18-H5 18 13 90 8.97 13.34 20.59
KM18-H6 18 13 90 11.53 17.15 16.01
KM18-H7 18 13 90 15.37 22.86 12.02
KM20-L1 20 15 35 2.72 6.32 9.72
KM20-L2 20 15 35 3.61 8.43 7.26
KM20-L3 20 15 35 4.52 10.54 5.81
KM20-L4 20 15 35 5.41 12.65 4.83
KM20-L5 20 15 35 6.32 14.76 4.15
KM20-L6 20 15 35 8.13 18.97 3.23
KM20-L7 20 15 35 10.82 25.3 2.42
KM20-M1 20 14 70 3.05 6.32 21.41
KM20-M2 20 14 70 4.06 8.43 16.02
KM20-M3 20 14 70 5.08 10.54 12.82
KM20-M4 20 14 70 6.27 12.65 10.97
KM20-M5 20 14 70 7.32 14.76 9.41
KM20-M6 20 14 70 9.17 18.97 7.14
KM20-M7 20 14 70 12.22 25.3 5.35
KM20-H1 20 14 100 4.24 6.32 48.08
KM20-H2 20 14 100 5.66 8.43 36.1
KM20-H3 20 14 100 7.06 10.54 28.74
KM20-H4 20 14 100 8.48 12.65 23.98
KM20-H5 20 14 100 9.91 14.76 20.62
KM20-H6 20 14 100 12.73 18.97 16.03
KM20-H7 20 14 100 16.97 25.3 12
KM25-L1 25 19 50 2.06 6.63 10.94
KM25-L2 25 19 50 2.74 8.84 8.2
KM25-L3 25 19 50 3.43 11.05 6.56
KM25-L4 25 19 50 4.11 13.26 5.46
KM25-L5 25 19 50 4.8 15.47 4.69
KM25-L6 25 19 50 6.2 19.89 3.65
KM25-L7 25 19 50 8.26 26.52 2.74
KM25-M1 25 19 80 2.95 6.63 21.74
KM25-M2 25 19 80 3.94 8.84 16.33
KM25-M3 25 19 80 4.9 11.05 13.01
KM25-M4 25 19 80 5.89 13.26 10.85
KM25-M5 25 19 80 6.88 15.47 9.31
KM25-M6 25 19 80 8.84 19.89 7.24
KM25-M7 25 19 80 11.79 26.52 5.43
KM25-H1 25 19 110 4.04 6.63 42.47
KM25-H2 25 19 110 5.38 8.84 31.79
Tehniskie parametri2
Prece Nr. Darbojas
Caurumu diametrs (mm)		 Atbloķē vārpstu
Diametrs(mm)		 Slodze(N) Darba augstums(mm) Brīvs augstums(mm) Atsperes ātrums(N/mm)
KM25-H3 25 19 110 6.73 11.05 25.46
KM25-H4 25 19 110 8.08 13.26 21.24
KM25-H5 25 19 110 9.4 15.47 18.12
KM25-H6 25 19 110 12.12 19.89 14.16
KM25-H7 25 19 110 16.15 26.52 10.61
KM28-L1 28 22 50 3.76 7.24 14.37
KM28-L2 28 22 50 5 9.65 10.75
KM28-L3 28 22 50 6.27 12.07 8.62
KM28-L4 28 22 50 7.52 14.48 7.18
KM28-L5 28 22 50 8.79 16.89 6.17
KM28-L6 28 22 50 10.03 19.3 5.39
KM28-L7 28 22 50 11.28 21.72 4.79
KM28-L8 28 22 50 13.79 26.54 3.92
KM28-L9 28 22 50 16.31 31.37 3.32
KM28-M1 28 22 80 4.39 7.24 28.07
KM28-M2 28 22 80 5.84 9.65 21
KM28-M3 28 22 80 7.32 12.07 16.84
KM28-M4 28 22 80 8.79 14.48 14.06
KM28-M5 28 22 80 10.24 16.89 12.03
KM28-M6 28 22 80 11.71 19.3 10.54
KM28-M7 28 22 80 13.18 21.72 9.37
KM28-M8 28 22 80 16.1 26.54 7.66
KM28-M9 28 22 80 19.02 31.37 6.48
KM28-H1 28 22 130 4.57 7.24 48.69
KM28-H2 28 22 130 6.07 9.65 36.31
KM28-H3 28 22 130 7.59 12.07 29.02
KM28-H4 28 22 130 9.12 14.48 24.25
KM28-H5 28 22 130 10.64 16.89 20.8
KM28-H6 28 22 130 12.17 19.3 18.23
KM28-H7 28 22 130 13.69 21.72 16.19
KM28-H8 28 22 130 16.71 26.54 13.22
KM28-H9 28 22 130 19.76 31.37 11.2
KM30-L1 30 24 50 3.18 7.62 11.26
KM30-L2 30 24 50 4.22 10.16 8.42
KM30-L3 30 24 50 5.28 12.7 6.74
KM30-L4 30 24 50 6.32 15.24 5.61
KM30-L5 30 24 50 7.39 17.78 4.81
KM30-L6 30 24 50 8.43 20.32 4.21
KM30-L7 30 24 50 9.5 22.86 3.74
KM30-L8 30 24 50 11.61 27.94 3.06
KM30-L9 30 24 50 13.72 33.02 2.59
KM30-M1 30 24 90 3.51 7.62 21.9
KM30-M2 30 24 90 4.7 10.16 16.48
KM30-M3 30 24 90 5.87 12.7 13.18
KM30-M4 30 24 90 7.04 15.24 10.98
KM30-M5 30 24 90 8.2 17.78 9.39
KM30-M6 30 24 90 9.37 20.32 8.22
KM30-M7 30 24 90 10.54 22.86 7.31
KM30-M8 30 24 90 12.9 27.94 5.98
KM30-M9 30 24 90 15.24 33.02 5.06
KM30-H1 30 24 130 4.19 7.62 37.9
KM30-H2 30 24 130 5.59 10.16 28.45
KM30-H3 30 24 130 6.99 12.7 22.77
KM30-H4 30 24 130 8.38 15.24 18.95
KM30-H5 30 24 130 9.78 17.78 16.25
KM30-H6 30 24 130 11.18 20.32 14.22
KM30-H7 30 24 130 12.57 22.86 12.63
KM30-H8 30 24 130 15.37 27.94 10.34
KM30-H9 30 24 130 18.16 33.02 8.75
KM35-L1 35 27 70 3.94 8.38 15.77
KM35-L2 35 27 70 5.23 11.18 11.76
KM35-L3 35 27 70 6.55 13.97 9.43
KM35-L4 35 27 70 7.87 16.76 7.87
KM35-L5 35 27 70 9.17 19.56 6.74
KM35-L6 35 27 70 10.49 22.35 5.9
KM35-L7 35 27 70 11.81 25.15 5.25
KM35-L8 35 27 70 14.43 30.73 4.29
KM35-L9 35 27 70 17.04 36.32 3.63
KM35-M1 35 27 110 4.14 8.38 25.94
KM35-M2 35 27 110 5.51 11.18 19.4
KM35-M3 35 27 110 6.88 13.97 15.51
KM35-M4 35 27 110 8.26 16.76 12.94
KM35-M5 35 27 110 9.63 19.56 11.08
KM35-M6 35 27 110 11.02 22.35 9.71
KM35-M7 35 27 110 12.4 25.15 8.63
KM35-M8 35 27 110 15.14 30.73 7.06
KM35-M9 35 27 110 17.91 36.32 5.98
KM35-H1 35 27 160 4.04 8.38 36.87
KM35-H2 35 27 160 5.38 11.18 27.59
KM35-H3 35 27 160 6.73 13.97 22.1
KM35-H4 35 27 160 8.08 16.76 18.43
KM35-H5 35 27 160 9.42 19.56 15.78
KM35-H6 35 27 160 10.77 22.35 13.82
KM35-H7 35 27 160 12.12 25.15 12.28
KM35-H8 35 27 160 14.81 30.73 10.05
KM35-H9 35 27 160 17.5 36.32 8.5
KM40-L1 40 30 100 2.9 9.14 16.03
KM40-L2 40 30 100 3.86 12.19 12
KM40-L3 40 30 100 4.8 15.24 9.58
KM40-L4 40 30 100 5.77 18.29 7.99
KM40-L5 40 30 100 6.73 21.34 6.84
KM40-L6 40 30 100 7.7 24.38 6
KM40-L7 40 30 100 8.66 27.43 5.33
KM40-L8 40 30 100 10.59 33.53 4.36
KM40-L9 40 30 100 12.52 39.62 3.69
KM40-M1 40 30 150 5.44 9.14 40.54
KM40-M2 40 30 150 7.24 12.19 30.3
KM40-M3 40 30 150 9.04 15.24 24.19
KM40-M4 40 30 150 10.85 18.29 20.16
KM40-M5 40 30 150 12.65 21.34 17.26
KM40-M6 40 30 150 14.48 24.38 15.15
KM40-M7 40 30 150 16.28 27.43 13.45
KM40-M8 40 30 150 19.89 33.53 11
KM40-M9 40 30 150 23.5 39.62 9.31
KM40-H1 40 30 300 5.66 9.14 86.21
KM40-H2 40 30 300 7.54 12.19 64.52
KM40-H3 40 30 300 9.42 15.24 51.55
KM40-H4 40 30 300 11.33 18.29 43.1
KM40-H5 40 30 300 13.21 21.34 36.9
KM40-H6 40 30 300 15.09 24.38 32.29
KM40-H7 40 30 300 16.97 27.43 28.68
KM40-H8 40 30 300 20.75 33.53 23.47
KM40-H9 40 30 300 24.54 39.62 19.89
KM45-L1 45 35 110 3.38 9.91 16.85
KM45-L2 45 35 110 4.52 13.21 12.66
KM45-L3 45 35 110 5.64 16.51 10.12
KM45-L4 45 35 110 6.76 19.81 8.43
KM45-L5 45 35 110 7.9 23.11 7.23
KM45-L6 45 35 110 9.02 26.42 6.32
KM45-L7 45 35 110 10.16 29.72 5.62
KM45-L8 45 35 110 12.4 36.32 4.6
KM45-L9 45 35 110 14.66 42.93 3.89
KM45-M1 45 35 225 5.33 9.91 49.13
KM45-M2 45 35 225 6.99 13.21 36.17
KM45-M3 45 35 225 9.14 16.51 30.53
KM45-M4 45 35 225 10.8 19.81 24.97
KM45-M5 45 35 225 12.7 23.11 21.61
KM45-M6 45 35 225 14.48 26.42 18.84
KM45-M7 45 35 225 16.26 29.72 16.72
KM45-M8 45 35 225 19.81 36.32 13.63
KM45-M9 45 35 225 23.37 42.93 11.5
KM45-H1 45 35 400 6.43 9.91 114.94
KM45-H2 45 35 400 8.38 13.21 82.82
KM45-H3 45 35 400 11.2 16.51 75.33
KM45-H4 45 35 400 12.95 19.81 58.31
KM45-H5 45 35 400 15.37 23.11 51.68
KM45-H6 45 35 400 17.27 26.42 43.72
KM45-H7 45 35 400 19.68 29.72 39.88
KM45-H8 45 35 400 24.26 36.32 33.17
KM45-H9 45 35 400 28.45 42.93 27.62
KM50-L1 50 40 110 4.83 10.29 20.15
KM50-L2 50 40 110 6.1 13.72 14.44
KM50-L3 50 40 110 7.87 17.15 11.85
KM50-L4 50 40 110 9.4 20.57 9.85
KM50-L5 50 40 110 11.3 24 8.66
KM50-L6 50 40 110 12.7 27.43 7.47
KM50-L7 50 40 110 14.99 30.86 6.93
KM50-L8 50 40 110 18.16 37.72 5.62
KM50-L9 50 40 110 21.34 44.58 4.73
KM50-L10 50 40 110 24.64 51.44 4.1
KM50-M1 50 40 225 4.62 10.29 39.68
KM50-M2 50 40 225 6.35 13.72 30.53
KM50-M3 50 40 225 7.49 17.15 23.29
KM50-M4 50 40 225 8.89 20.57 19.26
KM50-M5 50 40 225 10.54 24 16.72
KM50-M6 50 40 225 11.89 27.43 14.48
KM50-M7 50 40 225 13.59 30.86 13.03
KM50-M8 50 40 225 16.71 37.72 10.71
KM50-M9 50 40 225 19.61 44.58 9.01
KM50-M10 50 40 225 22.48 51.44 7.77
KM50-H1 50 40 400 5.92 10.29 91.53
KM50-H2 50 40 400 7.8 13.72 67.57
KM50-H3 50 40 400 10.16 17.15 57.22
KM50-H4 50 40 400 11.79 20.57 45.56
KM50-H5 50 40 400 14.15 24 40.61
KM50-H6 50 40 400 15.62 27.43 33.87
KM50-H7 50 40 400 17.91 30.86 30.89
KM50-H8 50 40 400 21.54 37.72 24.72
KM50-H9 50 40 400 25.65 44.58 21.13
KM50-H10 50 40 400 29.21 51.44 17.99
KM55-L1 55 45 125 5.59 11.05 22.89
KM55-L2 55 45 125 7.72 14.73 17.83
KM55-L3 55 45 125 9.68 18.41 14.3
KM55-L4 55 45 125 11.48 22.1 11.77
KM55-L5 55 45 125 13.92 25.78 10.54
KM55-L6 55 45 125 15.52 29.46 8.97
KM55-L7 55 45 125 18.41 33.15 8.49
KM55-L8 55 45 125 21.67 40.51 6.63
KM55-L9 55 45 125 25.65 47.88 5.62
KM55-L10 55 45 125 29.77 55.25 4.91
KM55-M1 55 45 250 3.1 11.05 31.45
KM55-M2 55 45 250 4.11 14.73 23.54
KM55-M3 55 45 250 5.16 18.41 18.85
KM55-M4 55 45 250 6.2 22.1 15.72
KM55-M5 55 45 250 7.21 25.78 13.46
KM55-M6 55 45 250 8.26 29.46 11.79
KM55-M7 55 45 250 9.27 33.15 10.47
KM55-M8 55 45 250 11.33 40.51 8.57
KM55-M9 55 45 250 13.41 47.88 7.25
KM55-M10 55 45 250 15.47 55.25 6.28
KM55-H1 55 45 400 5.31 11.05 69.69
KM55-H2 55 45 400 7.24 14.73 53.4
KM55-H3 55 45 400 9.09 18.41 42.87
KM55-H4 55 45 400 10.64 22.1 34.9
KM55-H5 55 45 400 12.24 25.78 29.54
KM55-H6 55 45 400 14.1 29.46 26.04
KM55-H7 55 45 400 15.82 33.15 23.08
KM55-H8 55 45 400 19.3 40.51 18.86
KM55-H9 55 45 400 23.11 47.88 16.15
KM55-H10 55 45 400 26.54 55.25 13.93
KM60-L1 60 50 135 5.59 11.43 23.12
KM60-L2 60 50 135 7.47 15.24 17.37
KM60-L3 60 50 135 9.32 19.05 13.87
KM60-L4 60 50 135 11.2 22.86 11.58
KM60-L5 60 50 135 13.06 26.67 9.92
KM60-L6 60 50 135 14.94 30.48 8.69
KM60-L7 60 50 135 16.79 34.29 7.71
KM60-L8 60 50 135 20.52 41.91 6.31
KM60-L9 60 50 135 24.26 49.53 5.34
KM60-L10 60 50 135 27.99 57.15 4.63
KM60-M1 60 50 275 6.65 11.43 57.53
KM60-M2 60 50 275 8.86 15.24 43.1
KM60-M3 60 50 275 11.07 19.05 34.46
KM60-M4 60 50 275 13.28 22.86 28.71
KM60-M5 60 50 275 15.49 26.67 24.6
KM60-M6 60 50 275 17.7 30.48 21.52
KM60-M7 60 50 275 19.94 34.29 19.16
KM60-M8 60 50 275 24.36 41.91 15.67
KM60-M9 60 50 275 28.78 49.53 13.25
KM60-M10 60 50 275 33.22 57.15 11.49
KM60-H1 60 50 450 7.75 11.43 122.28
KM60-H2 60 50 450 10.31 15.24 91.28
KM60-H3 60 50 450 12.9 19.05 73.17
KM60-H4 60 50 450 15.47 22.86 60.89
KM60-H5 60 50 450 18.06 26.67 52.26
KM60-H6 60 50 450 20.62 30.48 45.64
KM60-H7 60 50 450 23.22 34.29 40.65
KM60-H8 60 50 450 28.37 41.91 33.23
KM60-H9 60 50 450 33.53 49.53 28.13
KM60-H10 60 50 450 38.68 57.15 24.36
